Transmission Shifter Cable Bush - Shaft Identification & Fitting Guide

Download PDF

FITTING GUIDES

View our PDF to get detailed instructions on how to correctly identify Transmission Shifter Cable Housing

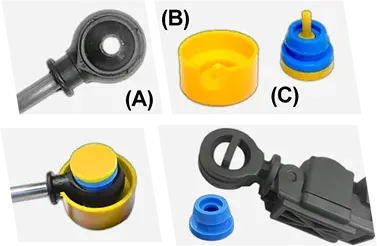

DC12-050P

  1. Clip the cup (B) over the end of the shifter cable (A).

  2. Place the bush and installer ( C) through the cable end and into the hole of the cup.

  3. Clamp the assembly with your forefinger and thumb and squeeze until the installer pushes the bushing into the cable end (You will hear a click as it's seated into position).

  4. Remove the cup and installer off the shifter and bush.

DC12-050P Shifter Bush Installation Instructions

DC12-054P

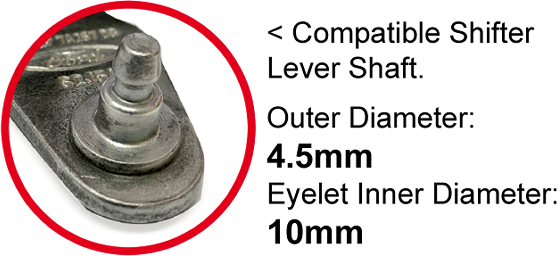

Compatle Shifter Lever Shaft

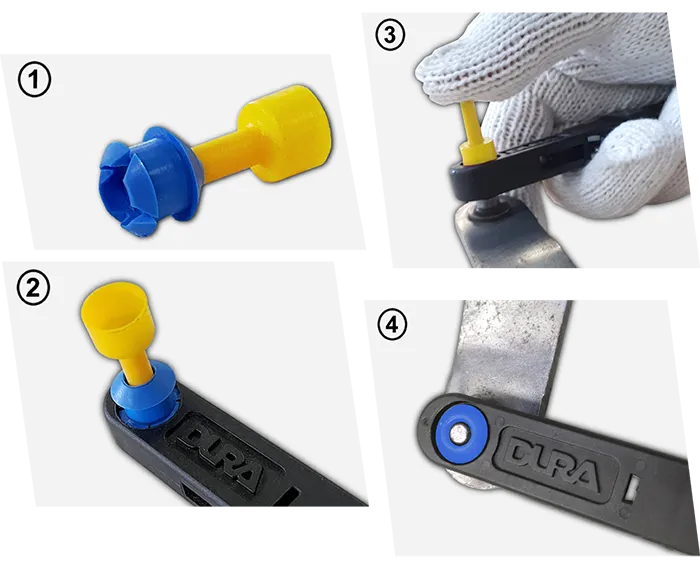

DC12-054P Shifter Cable Bush Installation Instructions

DC12-055P

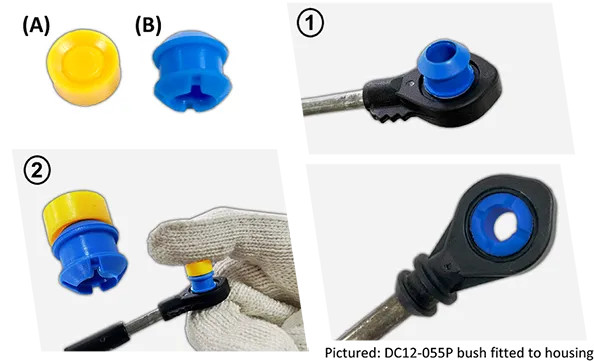

DC12-055P Shifter Cable Bush Installation Instructions

  1. Place the bush (A) into the shifter cable housing so the four notches enter the shifter lever.

  2. Place the bush cup (B) over the top of the bush and use thumb and forefinger to assist in fitting the bush into the shifter housing.

NOTE: The bush is a tight fit over the lever shaft to ensure a secure fit.

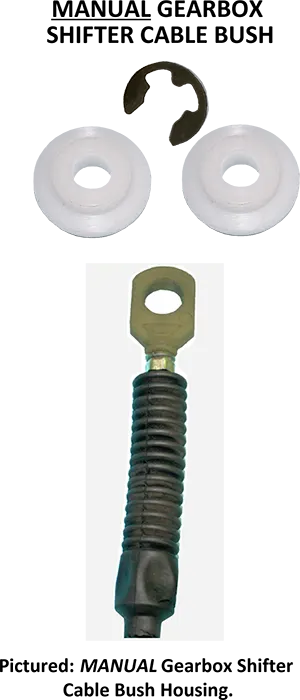

DC12-057P

Manual Gearbox Shifter Cable Bush Housing

DC12-GRBKIT

GRABKIT also available!

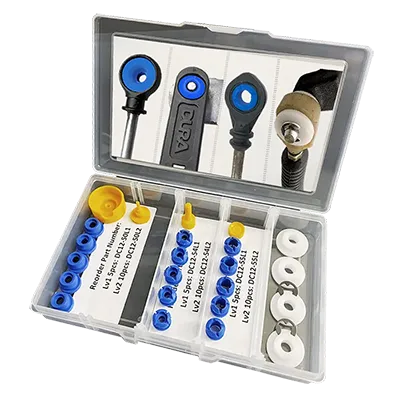

Shifter Bush Grab Kit

Includes all bush types, fitting over 250 models!

Save $$$ per refill
