Fitting Guides

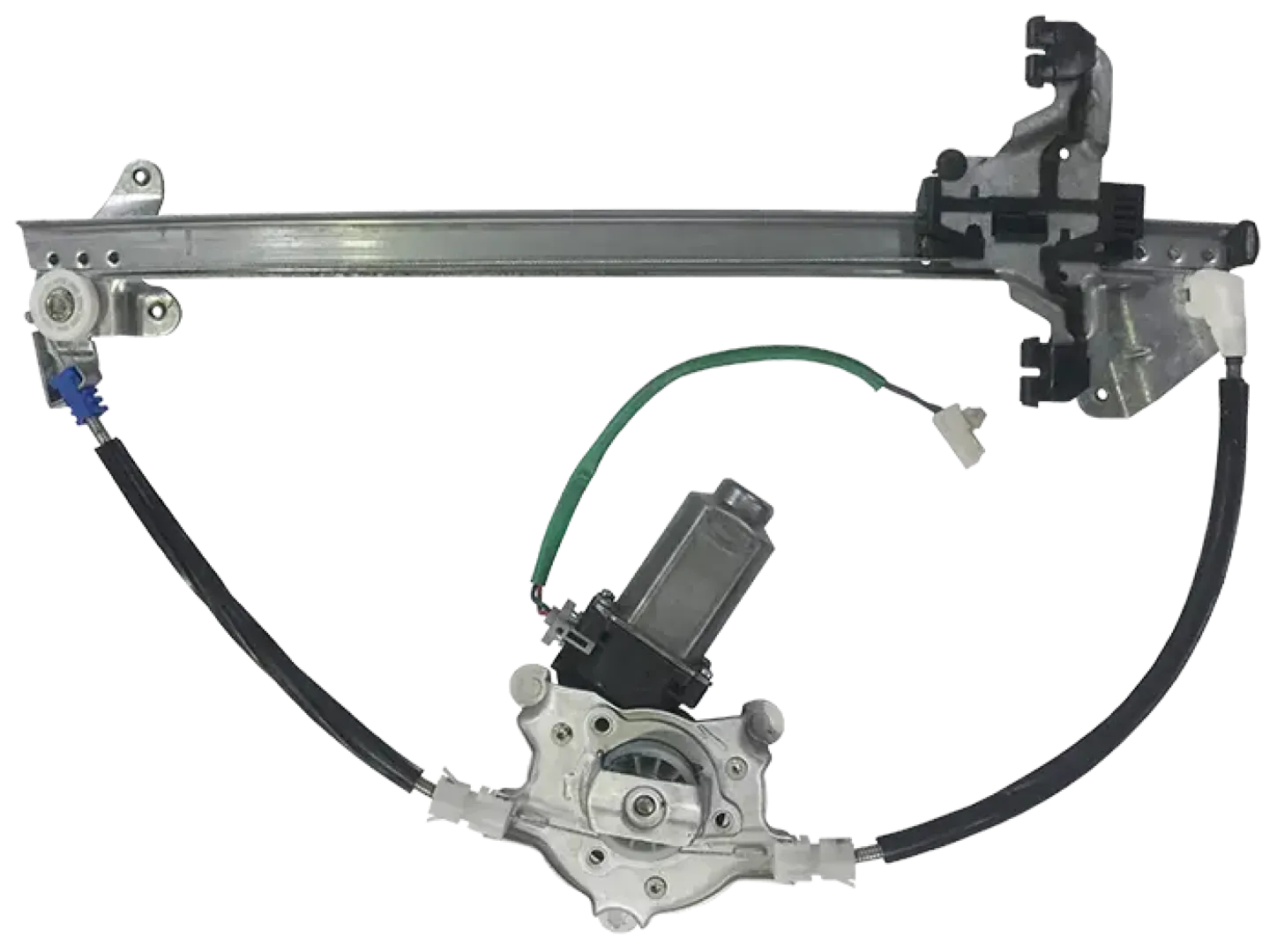

DO NOT operate the window motor until the window regulator is COMPLETELY assembled in the door. The Window Bailey Channel MUST be lubricated with a QUALITY SILICONE SPRAY. The glass may need aligning. This can be achieved by loosening the regulator and window slider bolts when the glass is near the top...

DO NOT operate the Window Motor until  COMPLETELY assembled in the door. The Window Bailey Channel  MUST be lubricated with a  QUALITY SILICONE SPRAY  or  GRAPHITE POWDER If fitting a Window Motor only, service the Window Regulator with some grease on the sliders and the teeth of the Regulator.  It is  VERY IMPORTANT  that the Adjuster Arm (normally around 6''...

Hyundai i30 Window Regulator Repair Kit Hyundai i30 (2007 – 2012) window regulators are one of our most popular fixes, however due to the size of the window regulators that are on a metal plate, a Powerwin Reconditioned unit with our strengthened window regulator slides can become uneconomical due to freight...

Take your Window Motor and plug it into the wiring harness on the car  WITHOUT THE WINDOW REGULATOR ATTACHED . Using the master switch, pull all the way up and allow the motor to spin for approximately 30 turns. As the diagram shows, ensure the Window Regulator slider is in the correct position. This...

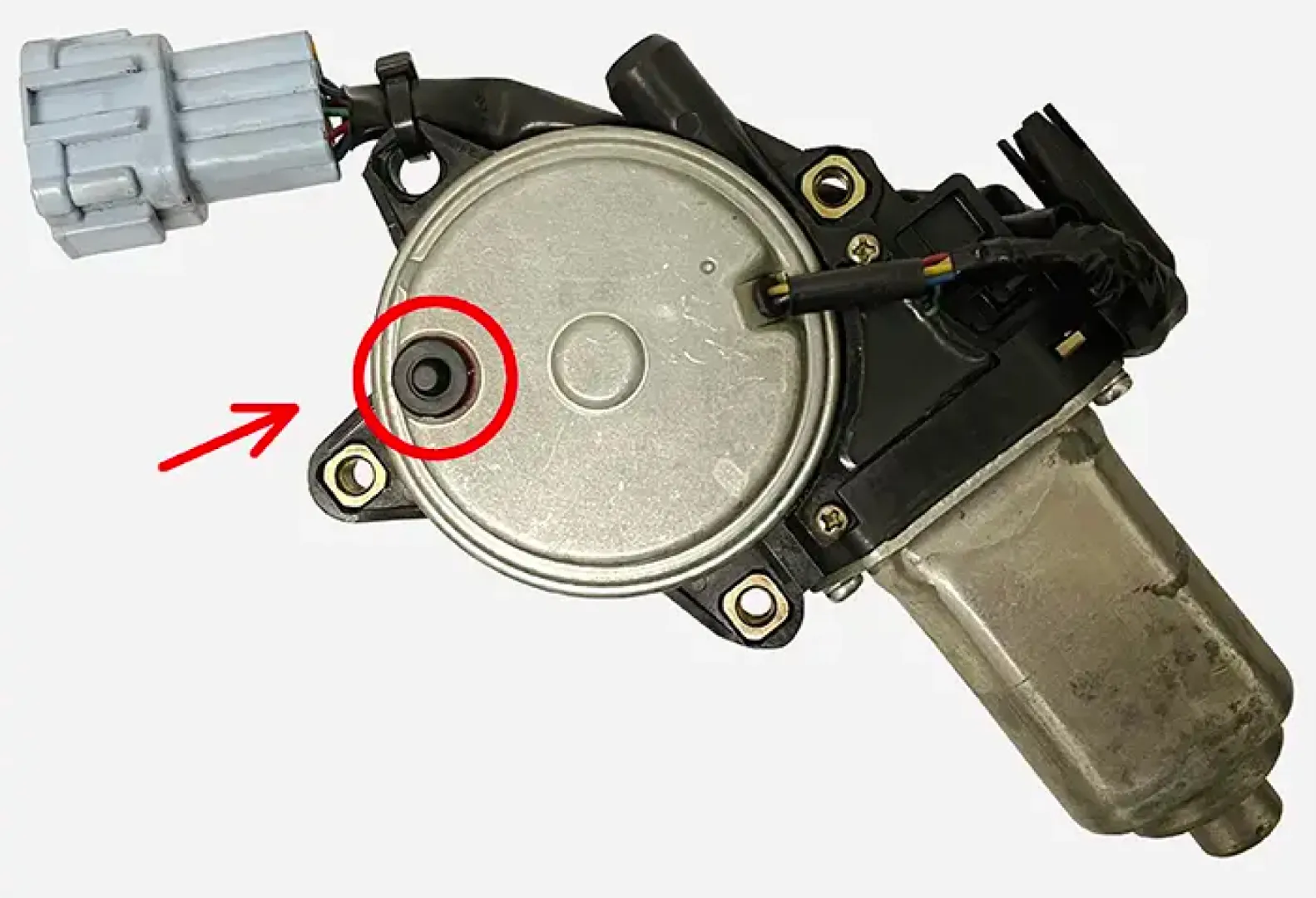

Remove the window motor from the window regulator Reconnect the window motor to the door harness Using the door switch, power the window motor in both directions for approximately 30 TURNS  or  until it stops on its own . This will allow the window motor to lose its memory. Confirm memory is lost by auto pressing...

Resetting the driver's power window is required when any of the following have occurred: Power window regulator replacement or repair Driver's (or front passenger's) door glass replacement or repair Power window motor replacement or repair Window run channel replacement or repair Power is removed from the power window control unit while the power window timer is ON NOTE: Steps 4 to 7 must be done within 5 seconds of each other Turn the ignition switch ON Move the driver's (or the front passenger's) window all the way down by using the driver's window DOWN switch Open the driver's...

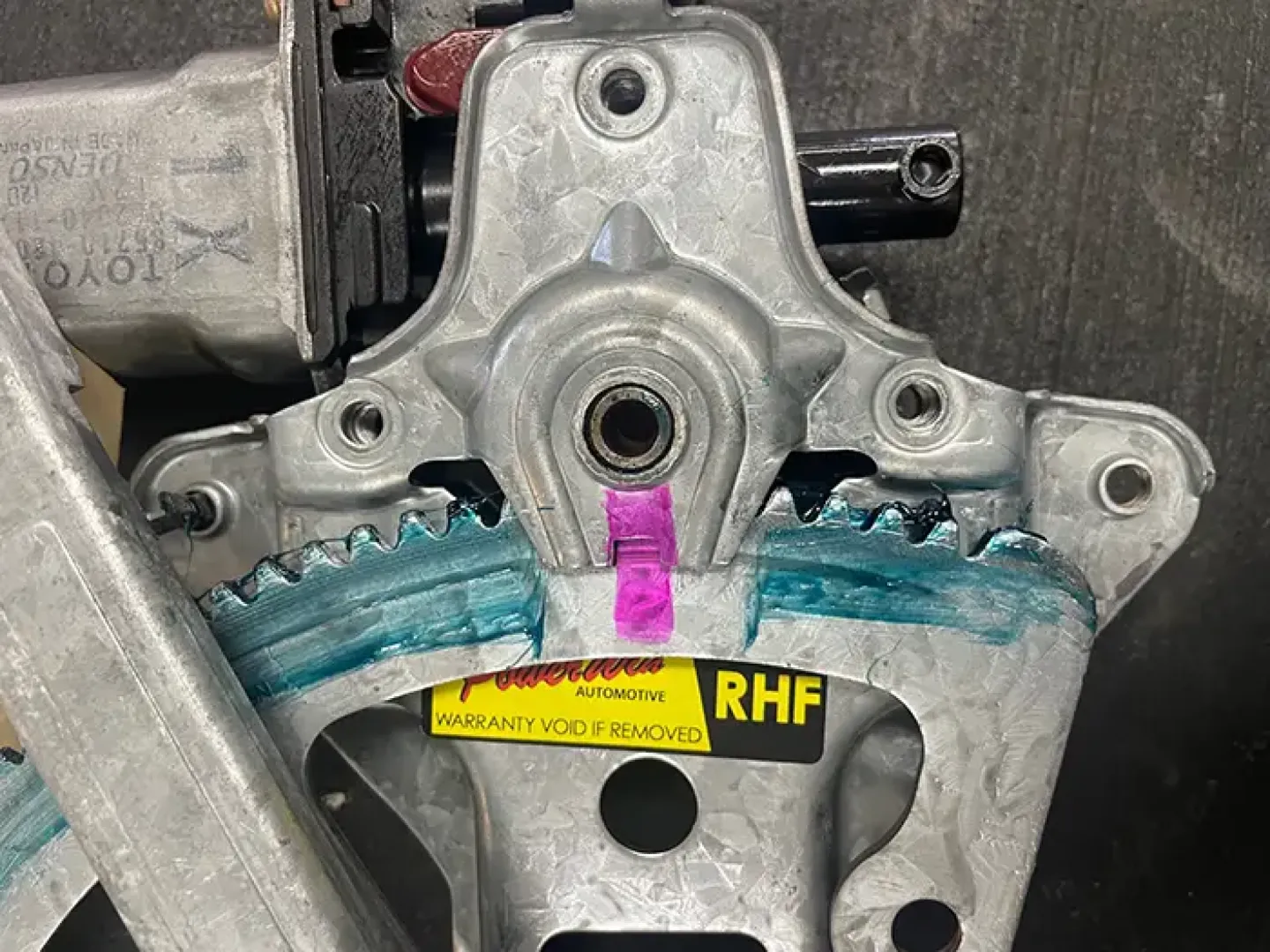

Using the master switch, lower the door glass to expose both 10mm bolts that connect glass clamps to the regulator. Remove bolts, release the door glass, unplug wiring loom, and remove window regulator assembly. Take note or mark the position the window motor is relative to the teeth on the regulator. You will need...

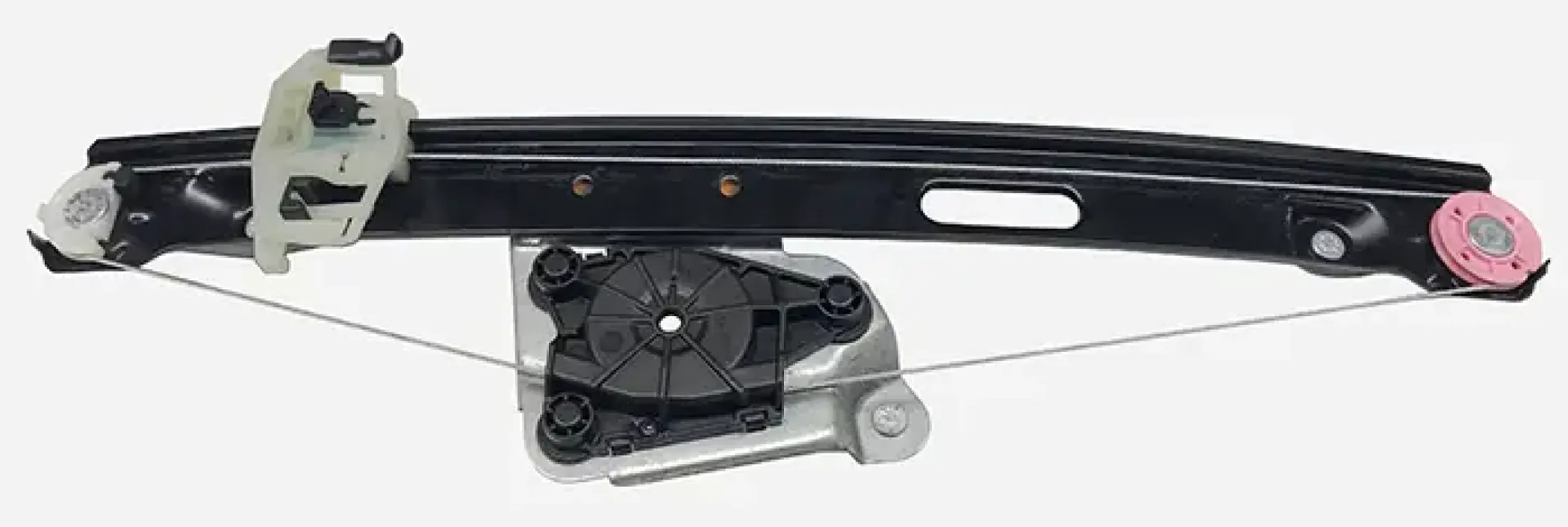

Service Information If any of the below work items were performed, the window regulator motor must be reset: Removal and installation of the Window Regulator Removal and installation of the Motor from the Window Regulator Operating the Window Regulator outside of the vehicle Removal and installation of the Window Glass To reset the motor, refer to...

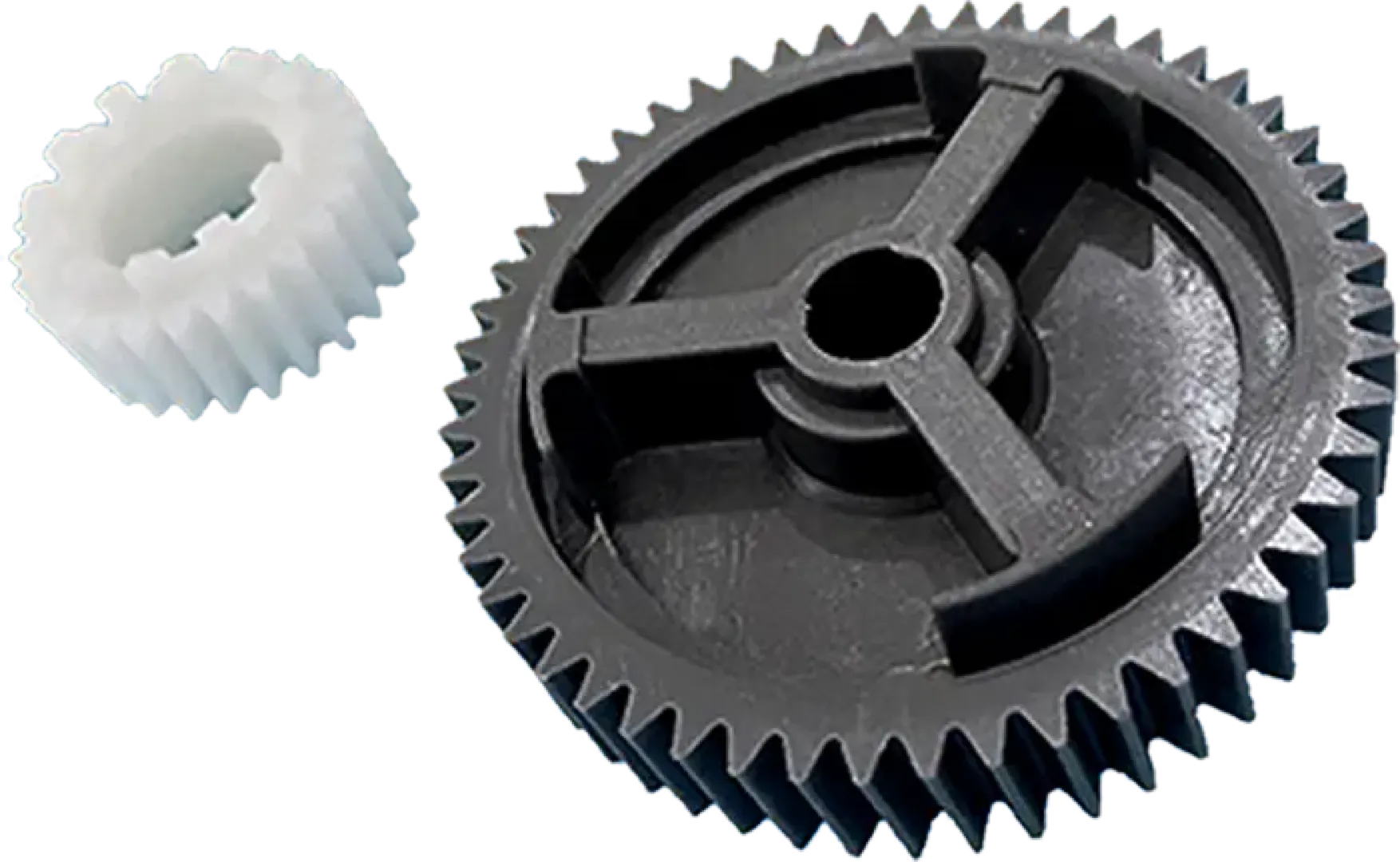

Removing / Refitting Mazda Motor Cog Locate the plastic joint (as pictured) and tap lightly to break the seam. Place Mazda window motor (as shown in image 2) and wedge motor cog cover open with a flat screw driver. Once open, pull out the gears A & B and any broken teeth from...

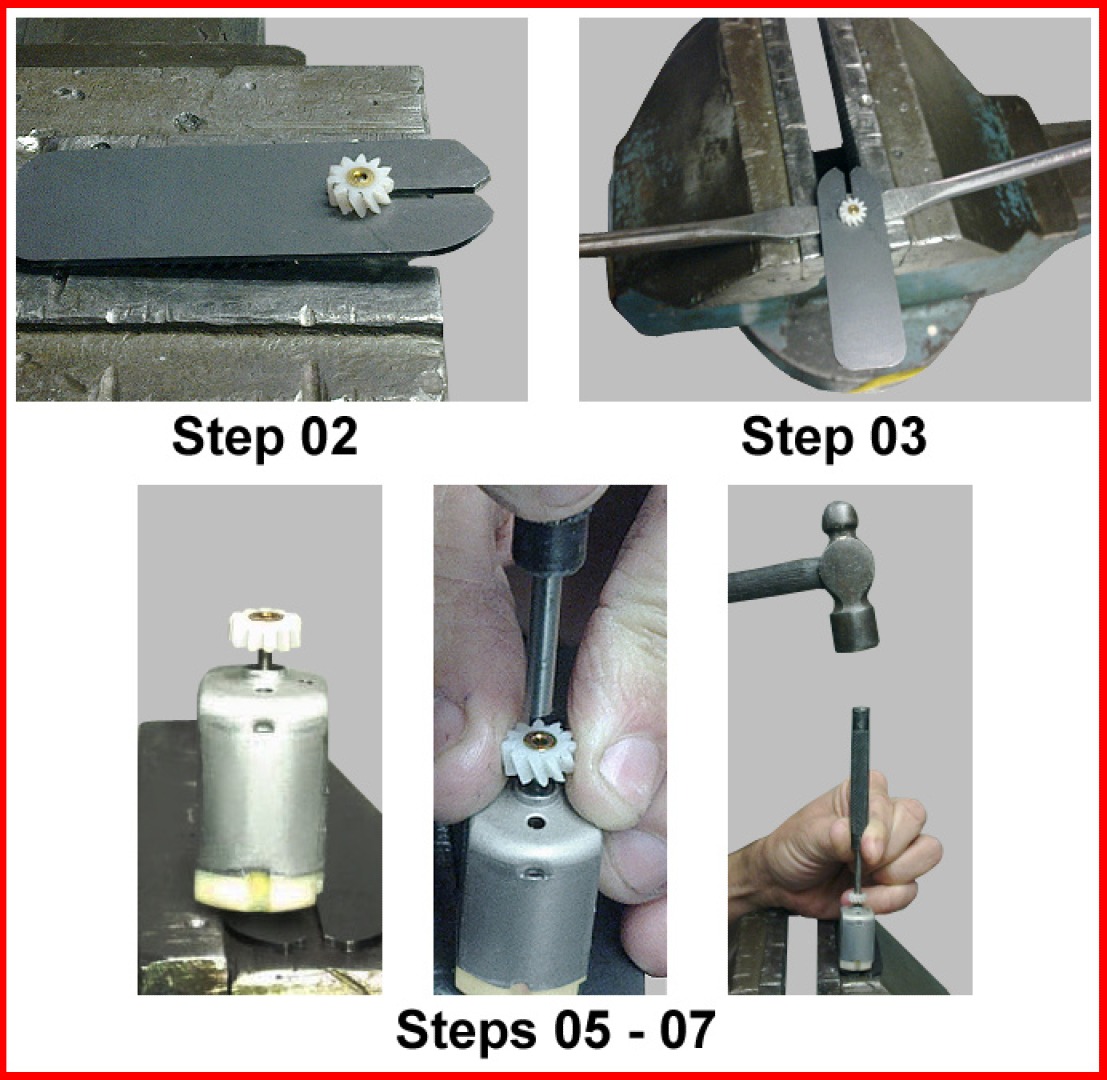

DOWNLOAD THE PDF FOR A BETTER VISUAL GUIDE TOOLS REQUIRED: Vice 2 Flat-blade large screwdrivers 4mm pin punch Small hammer Gear removal tool Place the old motor in the vice. Align the top of the motor with the top of the vice jaws. Tighten the jaws until you hear the motor 'crack' Slot on the Gear Removal Tool,...

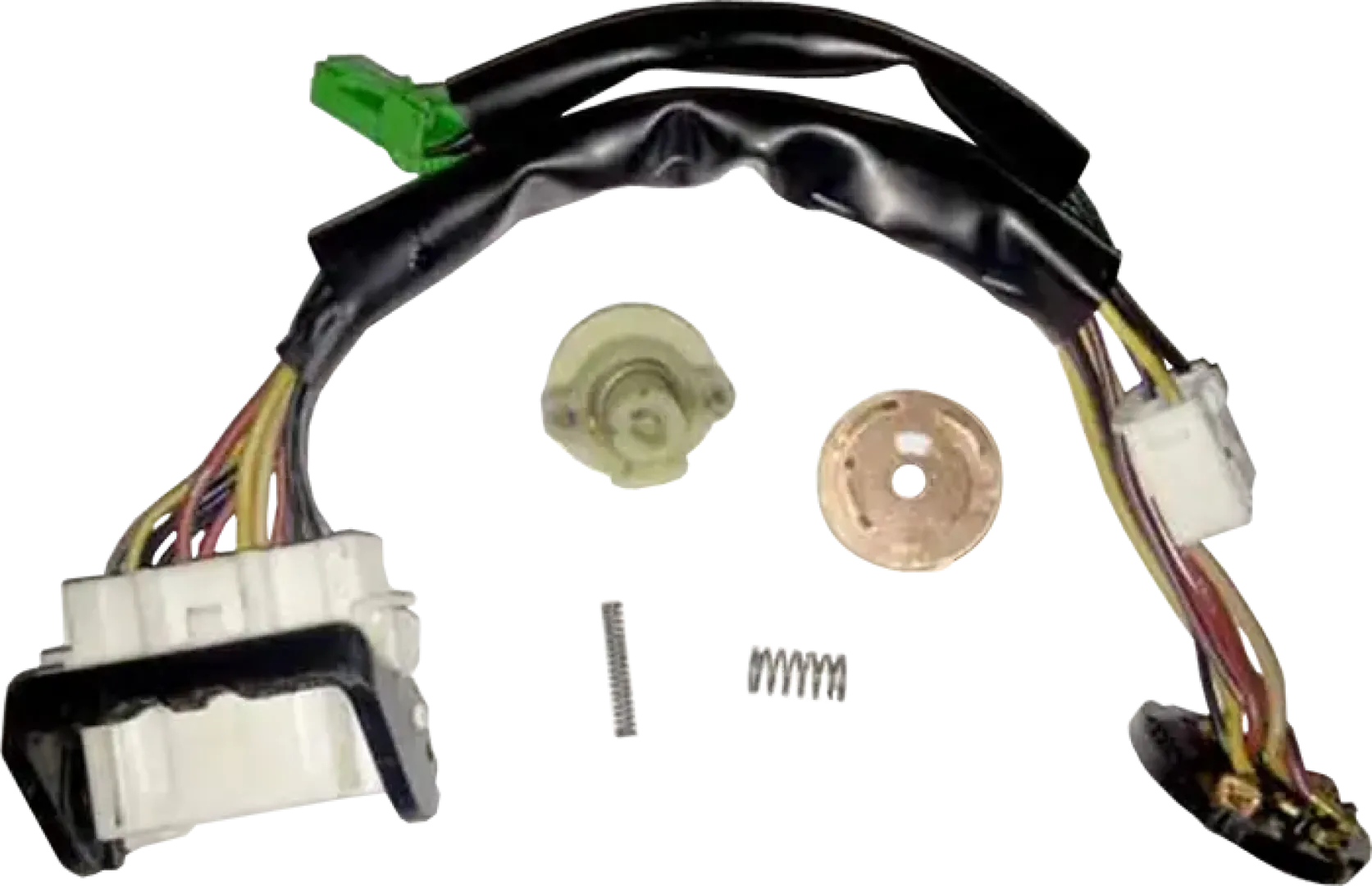

Prepare vehicle to remove and refit steering column - Confirm steering wheel and front wheels are in the straight ahead position. - Handbrake on and in Park or out of gear if it's a manual model. - Disconnect battery power from vehicle. Remove lower steering column shroud - Using a Phillips-head screwdriver remove 3 x phillips screws and remove...

FITTING GUIDES View our PDF to get detailed instructions on how to correctly identify Transmission Shifter Cable Housing DC12-050P Clip the cup (B) over the end of the shifter cable (A). Place the bush and installer ( C) through the cable end and into the hole of the cup. Clamp the assembly with your forefinger and thumb and squeeze until the installer pushes the bushing into the cable end (You will hear a click as it's seated into position). Remove the cup and installer off the shifter and bush. DC12-054P DC12-055P Place the bush (A) into the shifter...
